- Network Regeneration Tap for use with a 10/100/1000Base-T link
- One aggregation monitor port and a pair of non-aggregation monitor ports
- Failsafe Bypass
- Compatible with PoE. PoE pass-through between two inline ports
- Link Fault Pass-Through (LFPT)
- Plug-and-Play. No user configuration is needed

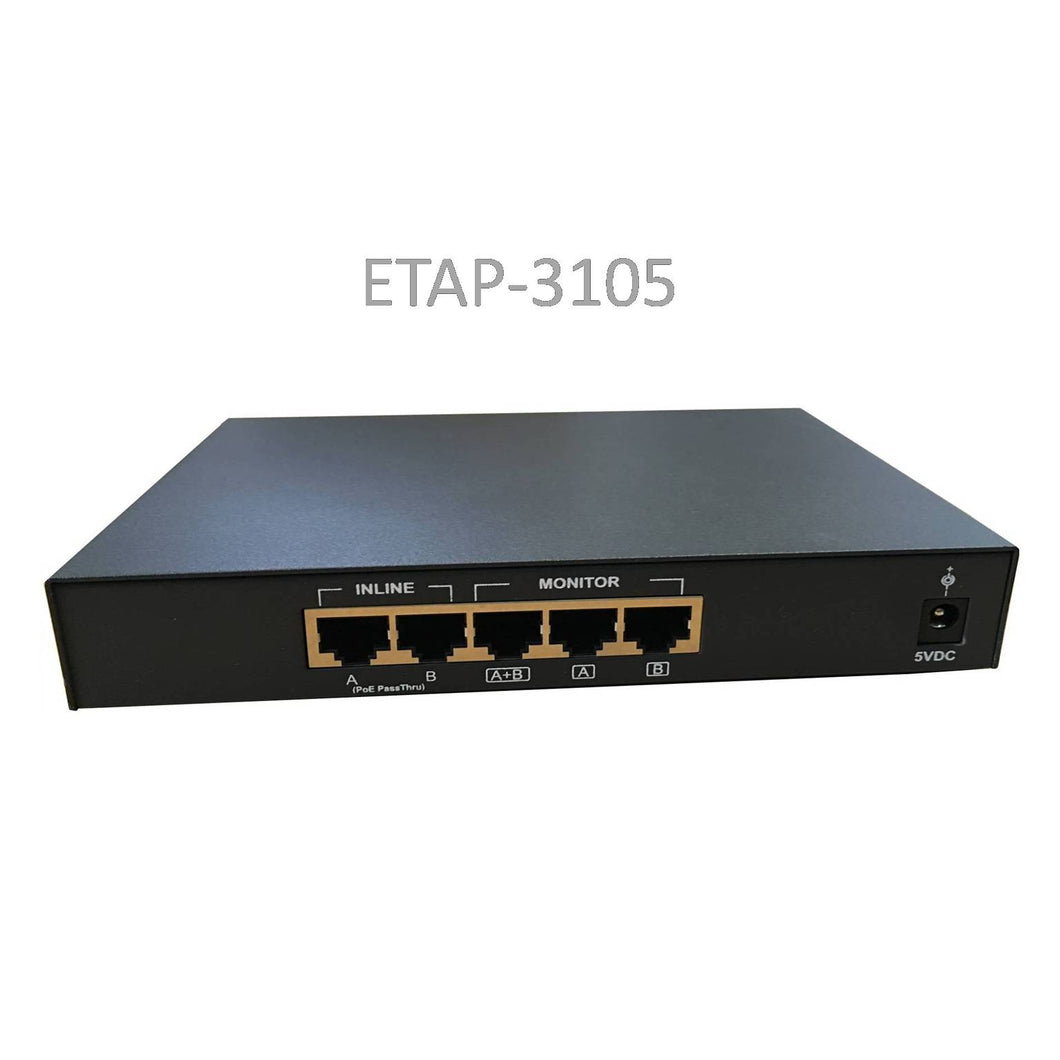

Dualcomm ETAP-3105 is a GbE copper Network Regeneration Tap for use with a 10/100/1000Base-T link.
ETAP-3105 supports Failsafe-Bypass by which the two inline ports of ETAP-3105 will fail over automatically to maintain link connectivity when ETAP-3105 loses its power. As such, ETAP-3105 can be used for deployment in a critical link path in a network.
When a link goes down on either side of the ETAP-3105 Tap, the link on the other side of the ETAP-3105 Tap will go down automatically. This feature is usually desirable or required for high availability deployment to reduce the time for activating a redundant link path in a network.
ETAP-3105 provides an aggregation monitor port and a pair of non-aggregation monitor ports for outputting captured the inline traffic. The aggregation monitor port outputs a copy of the inline traffic in both directions. Each non-aggregation monitor port outputs a copy of inline traffic in only one direction. Using the pair of non-aggregation monitor ports is usually preferred for high data throughput situations to avoid possible packet loss due to port oversubscription.
ETAP-3105 is compatible with Power-over-Ethernet (PoE), which is capable of passing PoE inline power between two copper inline ports. As such a connected PoE powered device (e.g., a PoE IP phone) can still receive the inline power from its PoE capable link partner such as a PoE switch.

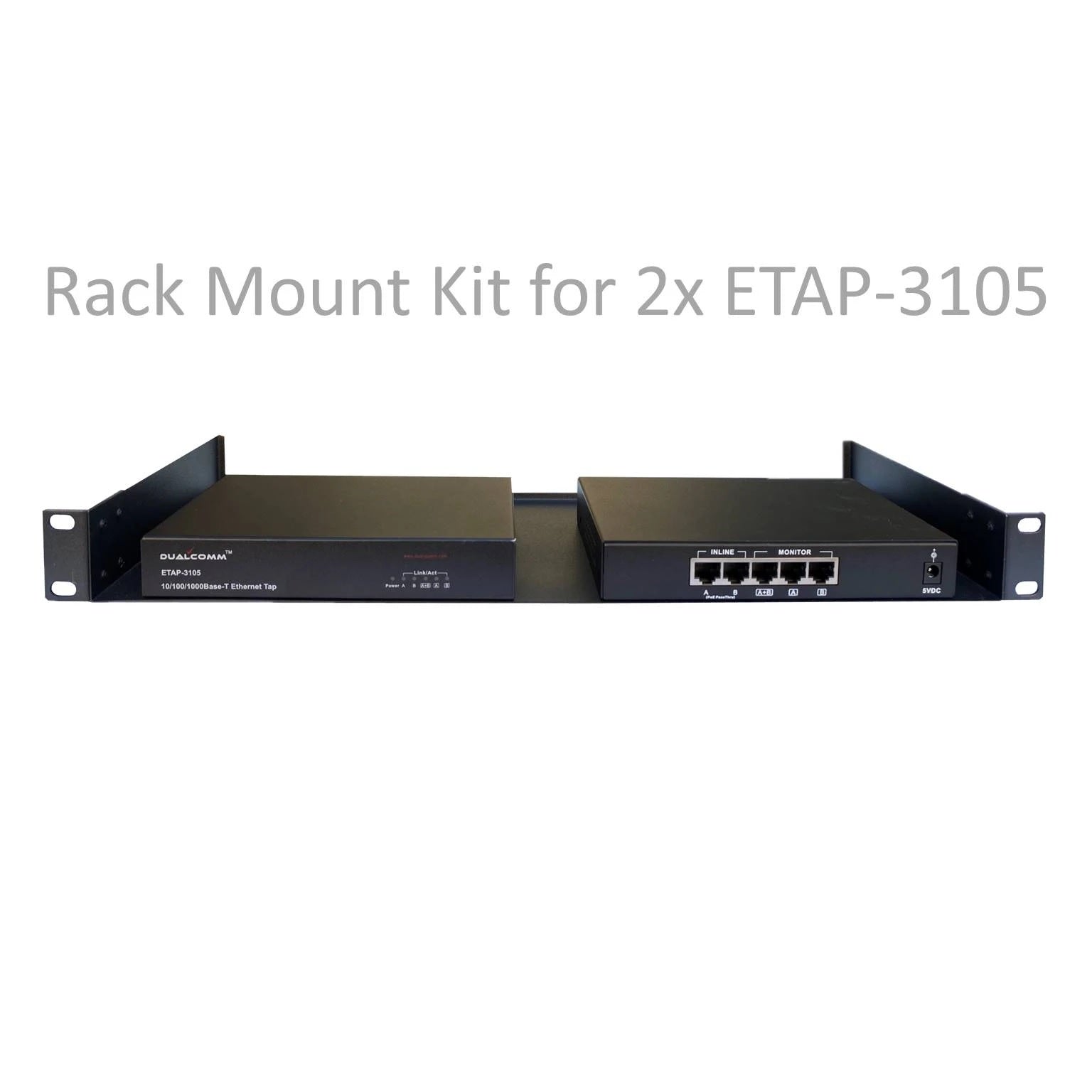

ETAP-3105 can be rack-mounted with the optional mounting hardware kit (Model No. RMKIT-1000), which can be purchased separately.
|ETAP-3105||Failsafe 10/100/1000Base-T Network Regeneration Tap|
|ETAP-3105-K1||One (1x) unit of ETAP-3105 with a rack-mount kit|
|ETAP-3105-K2||Two (2x) units of ETAP-5203 with a rack-mount kit|
|RMKIT-1000||1U Rack-Mount Kit|
